SNR3L16X - 3U 16-bay Linux NAS + iSCSI with Intel Xeon Quad Core CPU

● Dual Gigabit and RAID Hard Drive Protection ● Supports hardware RAID 0, 1, 1+0, 5, 6, 10, 30, 50, 60 with global or dedicated hot-spare ● SAS Expander support for storage expansion ● Feature rich Network Storage – built-in Snapshot, Folder Replication and iSCSI

Read more
SNR3L16X - 3U 16-bay Linux NAS + iSCSI with Intel Xeon Quad Core CPU

SDT4E6GB - S Solutions Tower 4-bay 6G eSATA System

● New 6G Port Multiplier PM storage, with optional 6G RAID controller, fully support 6G hard drives ● With optional RAID 5 controller card, PCIe 2.0 x4, for over 300MB/s RAID 5 performance. ● Dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller supports up to 2 units or 8 hard drives in a single or multiple RAID array. ● Backward compatible with PCIe 1.0. ● Supports RAID 0, 1, 10, 5, 5+ spare, spanning and JBOD.

Read more
SDT4E6GB - S Solutions Tower 4-bay 6G eSATA System

SDT5E6GB - S Solutions Tower 5-bay 6G eSATA System

● New 6G Port Multiplier PM storage, with optional 6G RAID controller, fully support 6G hard drives ● With optional RAID 5 controller card, PCIe 2.0 x4, for over 300MB/s RAID 5 performance. ● Dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller supports up to 2 units or 10 hard drives in a single or multiple RAID array. ● Supports RAID 0, 1, 10, 5, 5+ spare, spanning and JBOD.

Read more
SDT5E6GB - S Solutions Tower 5-bay 6G eSATA System

SDT8SB - S Solutions Tower 8-bay 6G SAS System

● Eight 3.5-inch SAS or SATA hard disk drives to SFF-8088 Mini-SAS interface. Accesses eight hard drives using only two cables. ● Supports JBOD, spanning, RAID 0, 1, 1+0, 5, 6 with spare via RAID controller. ● Supports Areca, ATTO, LSI, Intel, Adaptec, HighPoint SAS or SATA RAID controllers. ● Cable-less backplane design supporting hot-swappable SATA and SAS hard drives.

Read more
SDT8SB - S Solutions Tower 8-bay 6G SAS System

Product Show

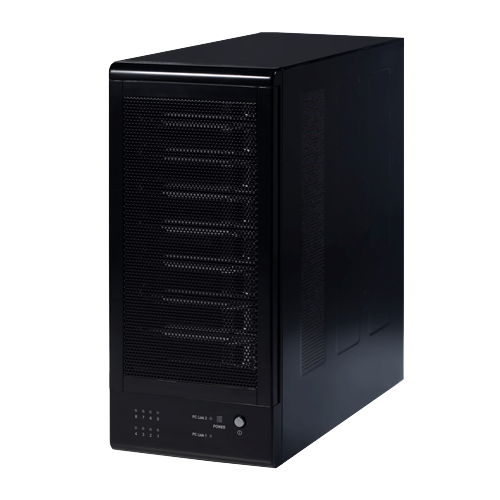

SDT8SB - S Solutions Tower 8-bay 6G SAS System

Model: SDT8SB

Description: ● Eight 3.5-inch SAS or SATA hard disk drives to SFF-8088 Mini-SAS interface. ● Accesses eight hard drives using only two cables. ● Supports JBOD, spanning, RAID 0, 1, 1+0, 5, 6 with spare via RAID controller. ● Supports Areca, ATTO, LSI, Intel, Adaptec, HighPoint SAS or SATA RAID controllers. ● Cable-less backplane design supporting hot-swappable SATA and SAS hard drives. ● Supports plug & play for easy installation.

INTRODUCTION:

SDT8SB - S Solutions Tower 8-bay 6G SAS System

  The S Solutions SDT8SB is a 8-bay tower with two mini-SAS connections, for high transfer rates of up to 750MB/s when used with a high performance RAID controller card. Utilizing high bandwidth mini-SAS (SFF-8088) cabling, the SDT8SB supports 6Gb/s SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry and server application. The mini-SAS ports combine eight hard drives connections into two, reducing possible points of failures, while preserving uninterrupted data transfer. The SDT8SB also supports SATA drives, allowing users the option to choose between high performance and high capacity storage solutions. Hard drive and RAID controller bundles options are available. When utilizing a SAS or SATA RAID controller, the unit could effortlessly support multi-streaming of compressed high-quality playback or a single-stream of uncompressed 10-bit high definition video under various RAID modes.



Features

●  Eight 3.5-inch SAS or SATA hard disk drives to SFF-8088 Mini-SAS interface.

●  Accesses eight hard drives using only two cables.

●  Supports JBOD, spanning, RAID 0, 1, 1+0, 5, 6 with spare via RAID controller.

●  Supports Areca, ATTO, LSI, Intel, Adaptec, HighPoint SAS or SATA RAID controllers.

●  Cable-less backplane design supporting hot-swappable SATA and SAS hard drives.

●  Supports plug & play for easy installation.

●  Compact enclosure with dust-free cover.

●  300 watts power supply (90V to 264V).

●  Supports PC, MAC and Linux. (Please check HBA or RAID controller driver compatibility.)



Specifications

Model

SDT8SB

Form Factor

Compact Tower

HDD Slots

8 Hot-Swappable 3.5"

RAID Level

JBOD (RAID Supported via Controller Card)

Maximum Capacity

32TB

Compatible RAID Card

Areca, ATTO, Intel, LSI, Adaptec, Dell, HighPoint

Host Interface

Mini-SAS (SFF-8088) x 2

Drive Interface

8 x 3.5" SATA or SAS

Cooling Fan

4.7" Ball Bearing

Power Supply

250W (90V-264V)

Status Indicators

Status and Power LEDs

Dimension (in) & Weight (lb)

5.9"W x 13.4"H x 13.4"D  & 13 lb

Safety Regulations

CE, FCC, UL, RoHS

Limited Warranty

2 Years
