SNR3L16X - 3U 16-bay Linux NAS + iSCSI with Intel Xeon Quad Core CPU

● Dual Gigabit and RAID Hard Drive Protection ● Supports hardware RAID 0, 1, 1+0, 5, 6, 10, 30, 50, 60 with global or dedicated hot-spare ● SAS Expander support for storage expansion ● Feature rich Network Storage – built-in Snapshot, Folder Replication and iSCSI

Read more
SNR3L16X - 3U 16-bay Linux NAS + iSCSI with Intel Xeon Quad Core CPU

SDT4E6GB - S Solutions Tower 4-bay 6G eSATA System

● New 6G Port Multiplier PM storage, with optional 6G RAID controller, fully support 6G hard drives ● With optional RAID 5 controller card, PCIe 2.0 x4, for over 300MB/s RAID 5 performance. ● Dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller supports up to 2 units or 8 hard drives in a single or multiple RAID array. ● Backward compatible with PCIe 1.0. ● Supports RAID 0, 1, 10, 5, 5+ spare, spanning and JBOD.

Read more
SDT4E6GB - S Solutions Tower 4-bay 6G eSATA System

SDT5E6GB - S Solutions Tower 5-bay 6G eSATA System

● New 6G Port Multiplier PM storage, with optional 6G RAID controller, fully support 6G hard drives ● With optional RAID 5 controller card, PCIe 2.0 x4, for over 300MB/s RAID 5 performance. ● Dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller supports up to 2 units or 10 hard drives in a single or multiple RAID array. ● Supports RAID 0, 1, 10, 5, 5+ spare, spanning and JBOD.

Read more
SDT5E6GB - S Solutions Tower 5-bay 6G eSATA System

SDT8SB - S Solutions Tower 8-bay 6G SAS System

● Eight 3.5-inch SAS or SATA hard disk drives to SFF-8088 Mini-SAS interface. Accesses eight hard drives using only two cables. ● Supports JBOD, spanning, RAID 0, 1, 1+0, 5, 6 with spare via RAID controller. ● Supports Areca, ATTO, LSI, Intel, Adaptec, HighPoint SAS or SATA RAID controllers. ● Cable-less backplane design supporting hot-swappable SATA and SAS hard drives.

Read more
SDT8SB - S Solutions Tower 8-bay 6G SAS System

Product Show

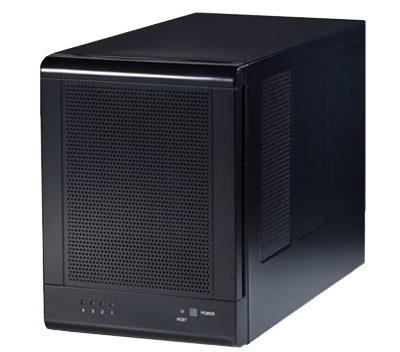

SDT4E6GB - S Solutions Tower 4-bay 6G eSATA System

Model: SDT4E6GB

Description: ● New 6G Port Multiplier PM storage, with optional 6G RAID controller, fully support 6G hard drives ● With optional RAID 5 controller card, PCIe 2.0 x4, for over 300MB/s RAID 5 performance. ● Dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller supports up to 2 units or 8 hard drives in a single or multiple RAID array. ● Backward compatible with PCIe 1.0. ● Supports RAID 0, 1, 10, 5, 5+ spare, spanning and JBOD.

INTRODUCTION:

SDT4E6GB - S Solutions Tower 4-bay 6G eSATA System



The S Solutions SDT4E6GB is the world first 6G port multiplier storage. With optional 6G PCIe 2.0 x4 RAID 5 controller, it is a compact RAID tower utilizing the latest SATA III port multiplier technology, where one single eSATA cable connects to four 6Gb/s SATA hard drives. With the optional high performance RAID 5 controller card, the  performance is capable of reaching over 300MB/s. Online expansion is a feature included in the controller card so that RAID could be expanded without the need to recreate the storage space or erase the existing data. Advanced monitoring functions include real time hard drives health status, remote RAID management and e-mail notification for critical events. Designed with easy installation in mind, the trayless SDT4E6GB allows instant setup by simply inserting the hard drives after opening the protective ventilating cover. The optional dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller card allows the connection of up to two SDT4E6GB units (up to 8 hard drives) using only two cables, while all drives could be configured into a single or multiple RAID arrays, providing over 700MB/s in performance with 8 drives.


Features

●  New 6G Port Multiplier PM storage, with optional 6G RAID controller, fully support 6G hard drives

●  With optional RAID 5 controller card, PCIe 2.0 x4, for over 300MB/s RAID 5 performance.

●  Dual-port eSATA 6Gb/s PCIe 2.0 x4 RAID controller supports up to 2 units or 8 hard drives in a single or multiple RAID array.

● Backward compatible with PCIe 1.0.

●  Supports RAID 0, 1, 10, 5, 5+ spare, spanning and JBOD.

●  Supports online expansion to expand capacity without the need to recreate the RAID volume and erase the existing data.

●  Built-in real time hard drive health monitoring, remote RAID management and e-mail notification for critical events.

●  Supports PC, Linux and MAC OS, including Windows 8, Windows Server 2012 and MAC OS 10.6 or up.

●  Accesses four hard drives using only one cable.

●  Host interface: eSATA with 6G Port Multiplier.

●  Drive interface: 4 x 3.5" SATA, up to 4TB per drives.



Specifications

Model

SDT4E6GB

Form Factor

Compact Tower

HDD Slots

4 Hot-Swappable 3.5" Trayless

RAID Level

RAID 0, 1, 10, 5, 5+spare, Spanning and JBOD
(via optional RAID 5 Controller Card)

Maximum Capacity

16TB raw

Host Interface

eSATA (via 6G Port Multiplier)
PCIe 2.0 x4 for optional RAID 5 Controller

Drive Interface

4 x 3.5" SATA

Cooling Fan

3.15" Ball Bearing

Power Supply

150W (115V-230V Switchable)

Status Indicators

Power LED and 4 * Access LED

Dimension (in) & Weight (lb)

5.3"W x 7.1"H x 10.0"D & 5.9 lb

Safety Regulations

CE, FCC, UL, RoHS

Limited Warranty

2 Years
